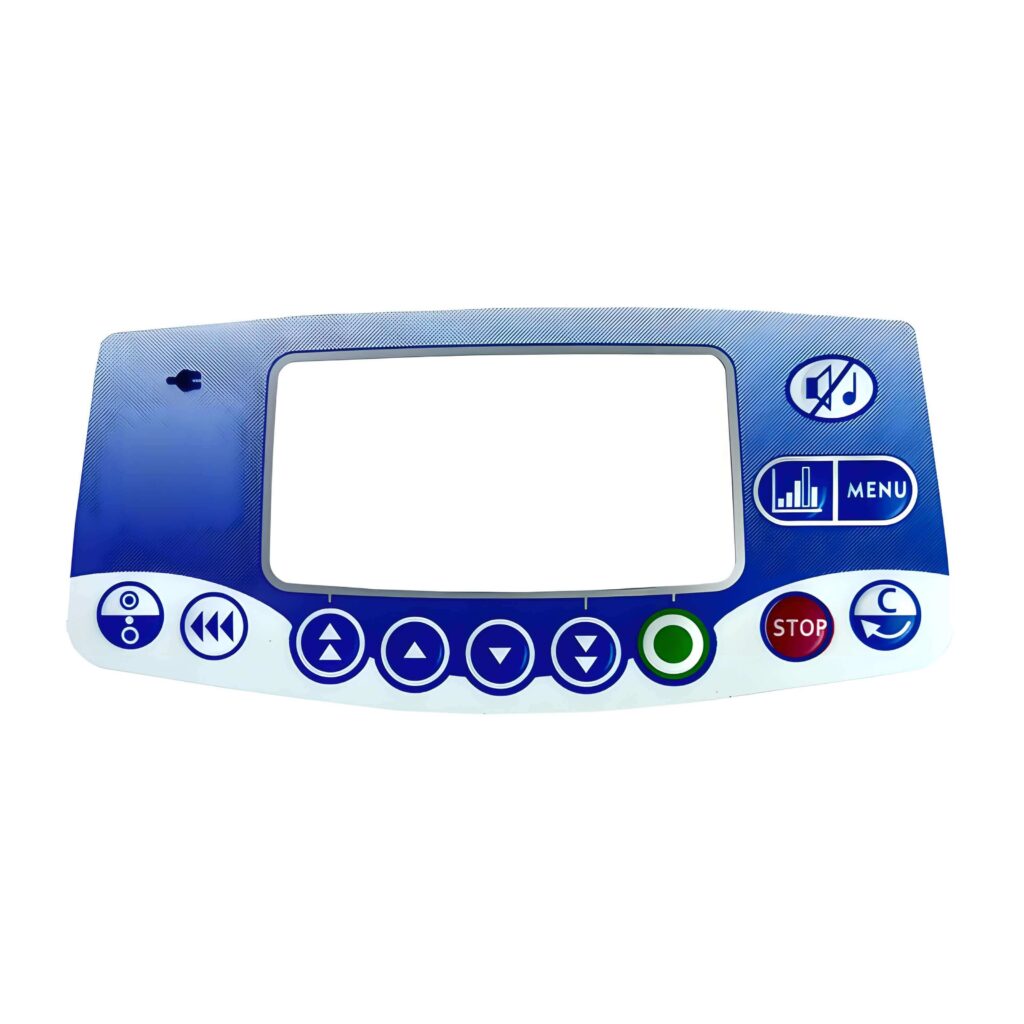

Polydome membrane switch for infusion pump

category membrane switches

  • Product Title: Polydome membrane switch
  • Application: Injection molding pump
  • Over all size: 137*62mm
  • Thinckness: 1.07mm
  • Material:
  • (1) Graphic overlay-Autotex F150

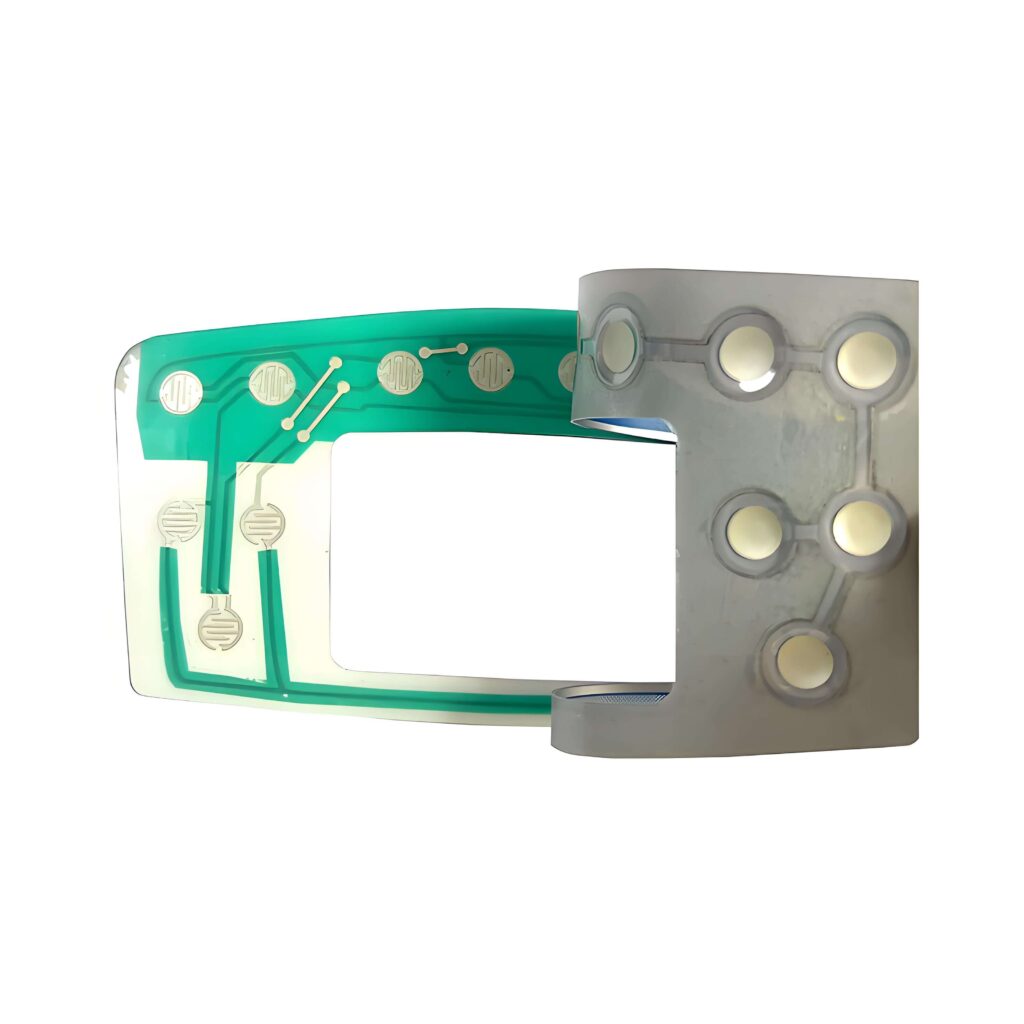

    (2) Circuit: PET,0.125+Silver paste printing

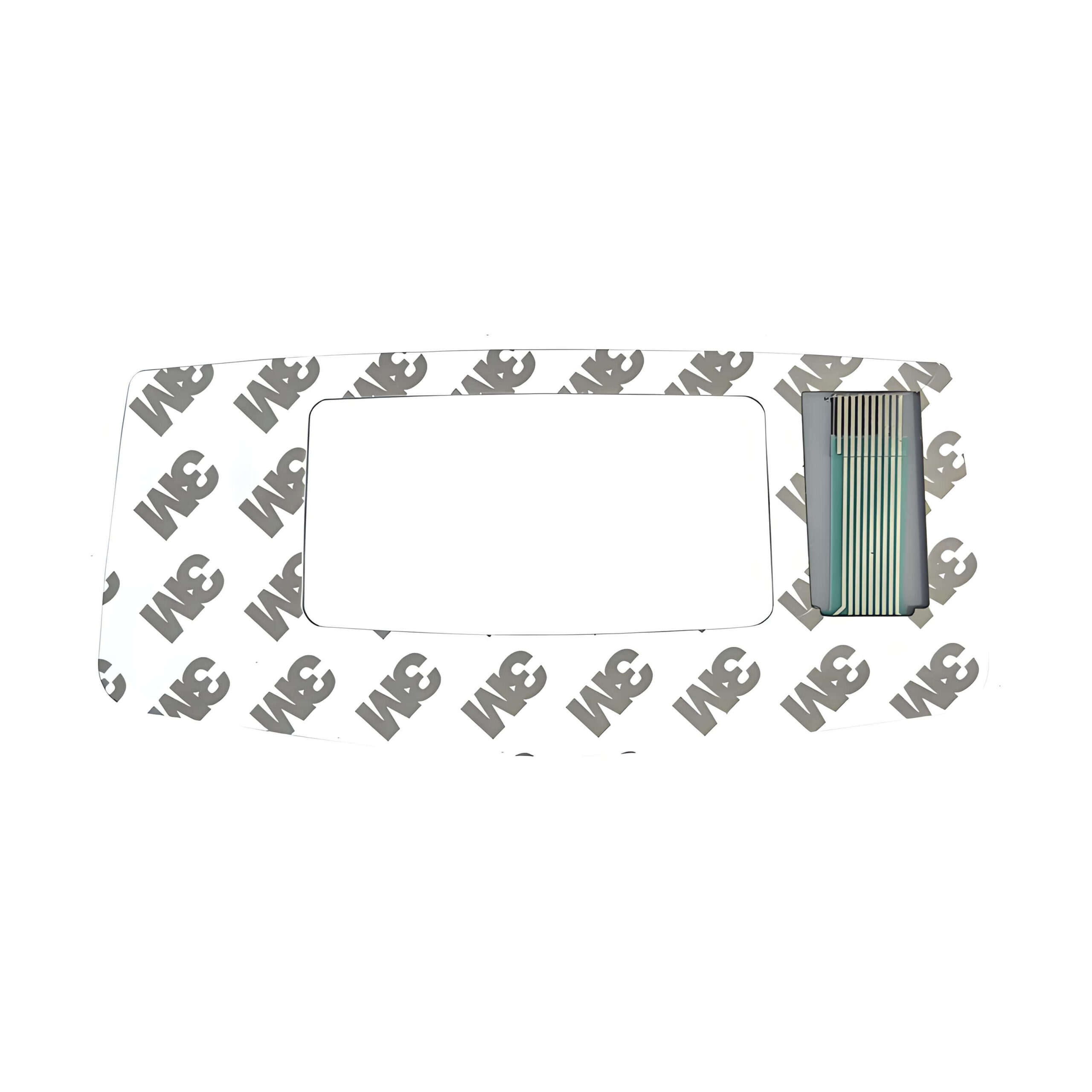

    (3) Rear adhesive:3M 55280

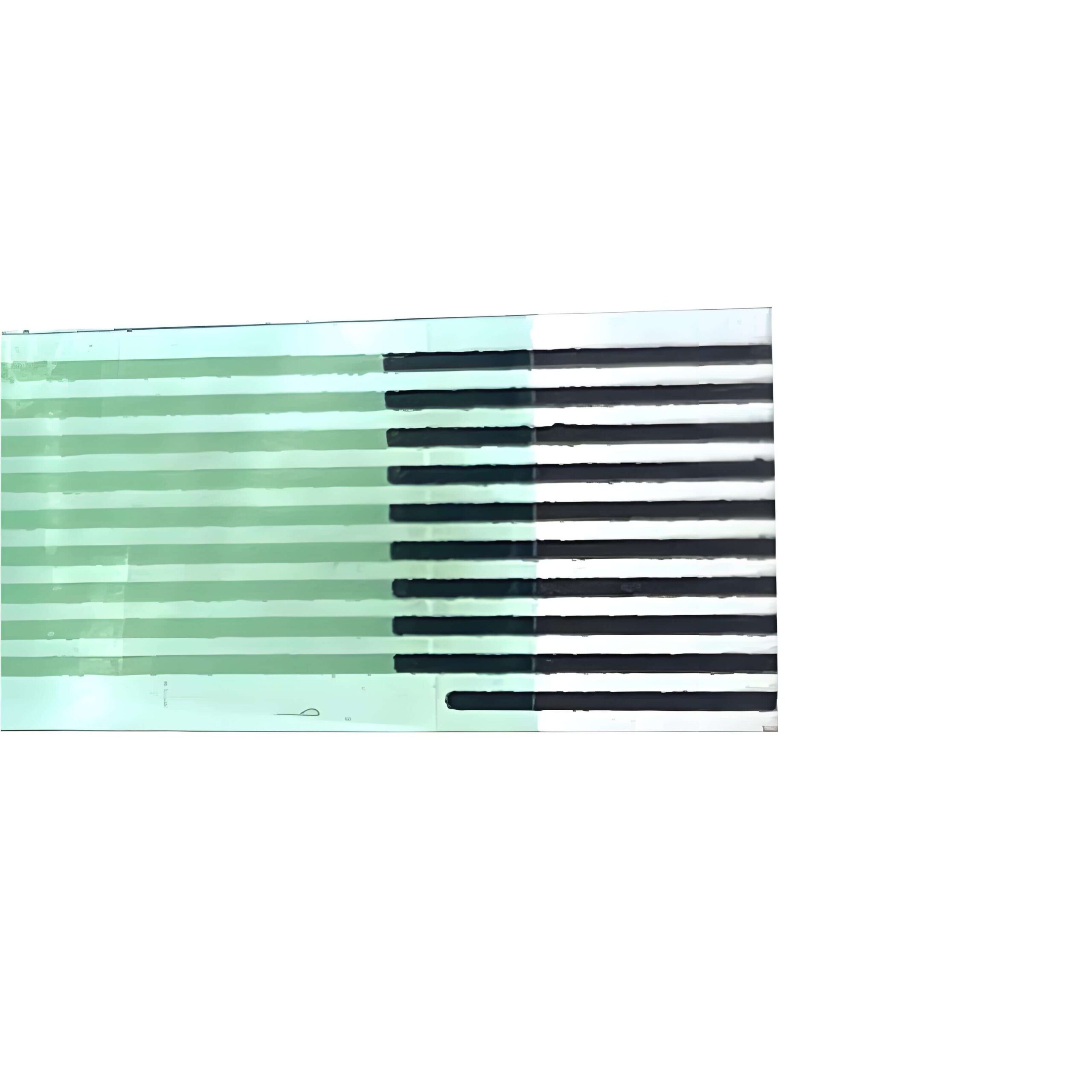

  • Connector: FPC, pitch 1.0mm, 0.3mm thickness
  • Working temperature: -20℃~+60℃
  • Work life: more than 1 million times.

Typical parameters

Item

Specification

Working Voltage

5V DC

Rated Current

25mA – 150mA

Operating Temperature

-20℃ ~ +70℃ ( Metal Dome )

-20℃ ~ +40℃ ( Poly Dome )

Operating Humidity

100% RH ( Waterproof Design)

<80% RH ( Non-Waterproof Design)

Sealing Property

IP68 ( Waterproof Design )

IP65 ( Non-Waterproof Design )

Storage Temperature

0 – 40℃

Storage Humidity

<80% RH

Button Trigger Force

150 – 400gf

Button Embossing Height

0.3 – 0.5mm

Working Life

0.8 – 1.5 million cycles

Tail Folding

R > 1mm, 180-degree bend
