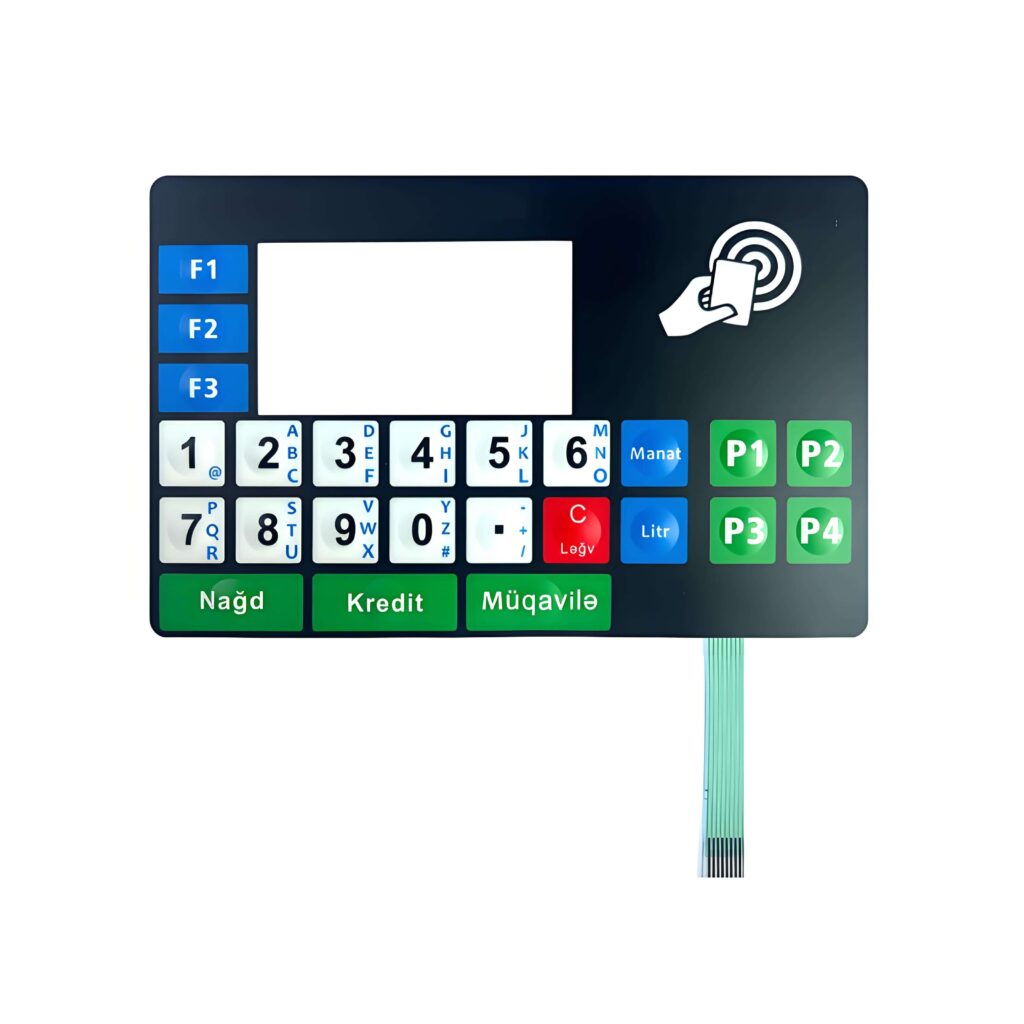

Fuel dispenser membrane keypads

category membrane switches

  • Product Title: Conventional membrane switch
  • Application: Refueling machine
  • Over all size: 169*109mm
  • Thinckness: 0.69mm
  • Material:
  • (1) Graphic overlay-Autotex F200

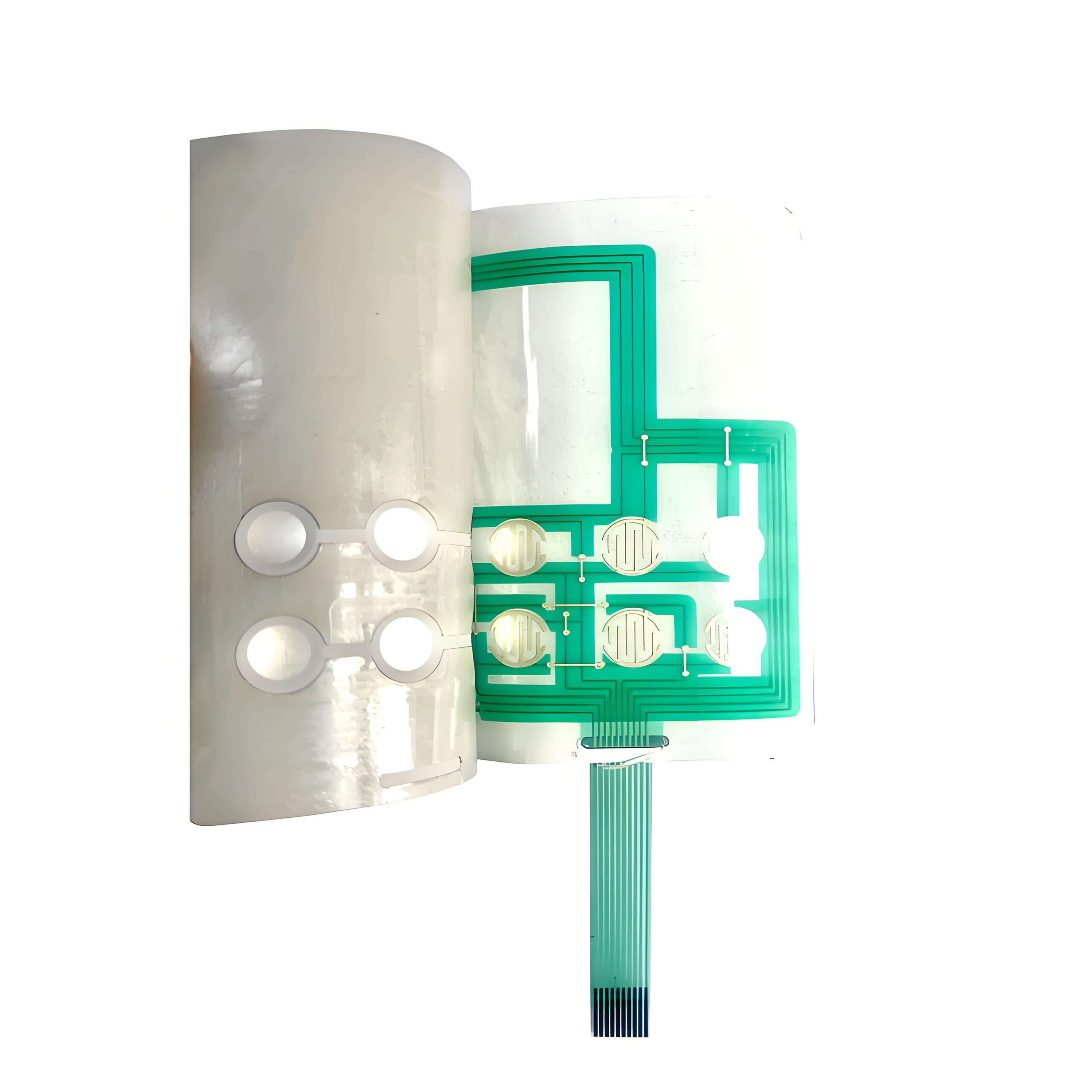

    (2) Circuit: PET,0.125+Silver paste printing

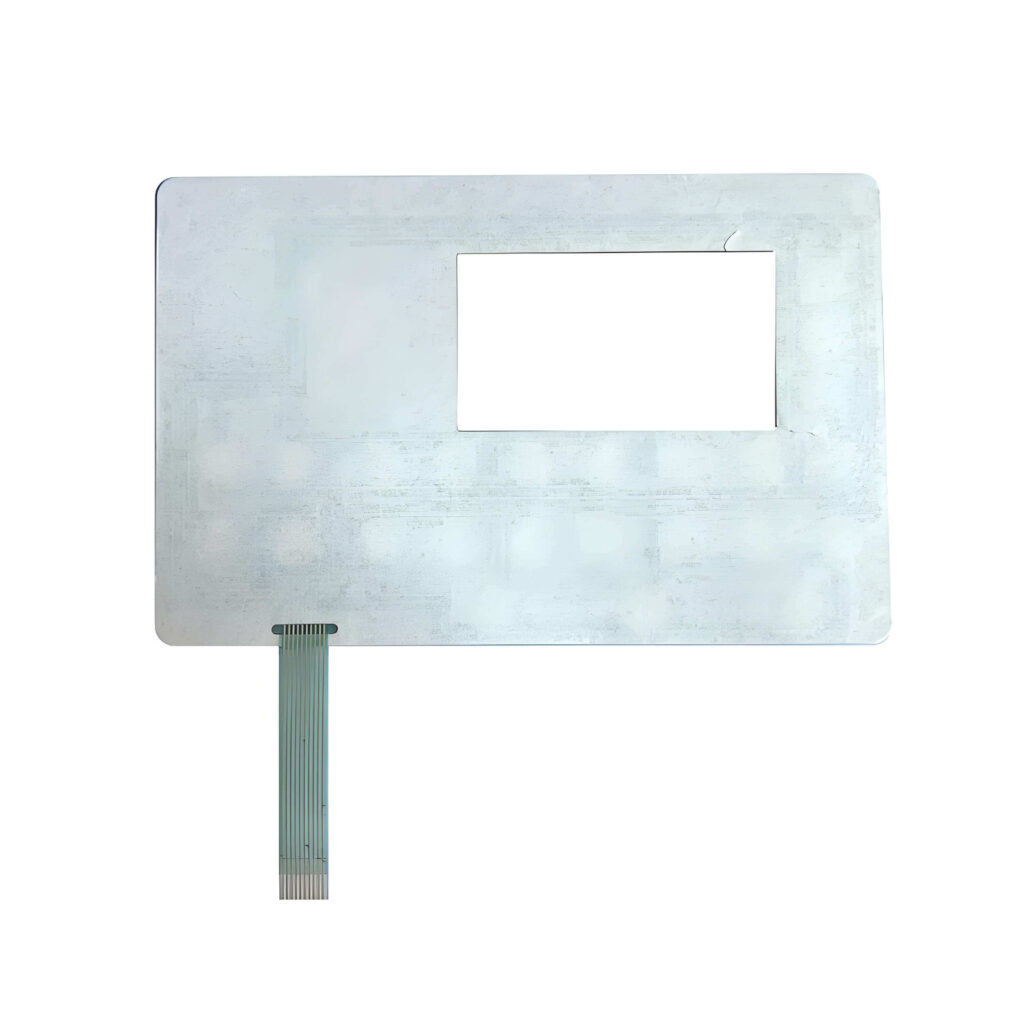

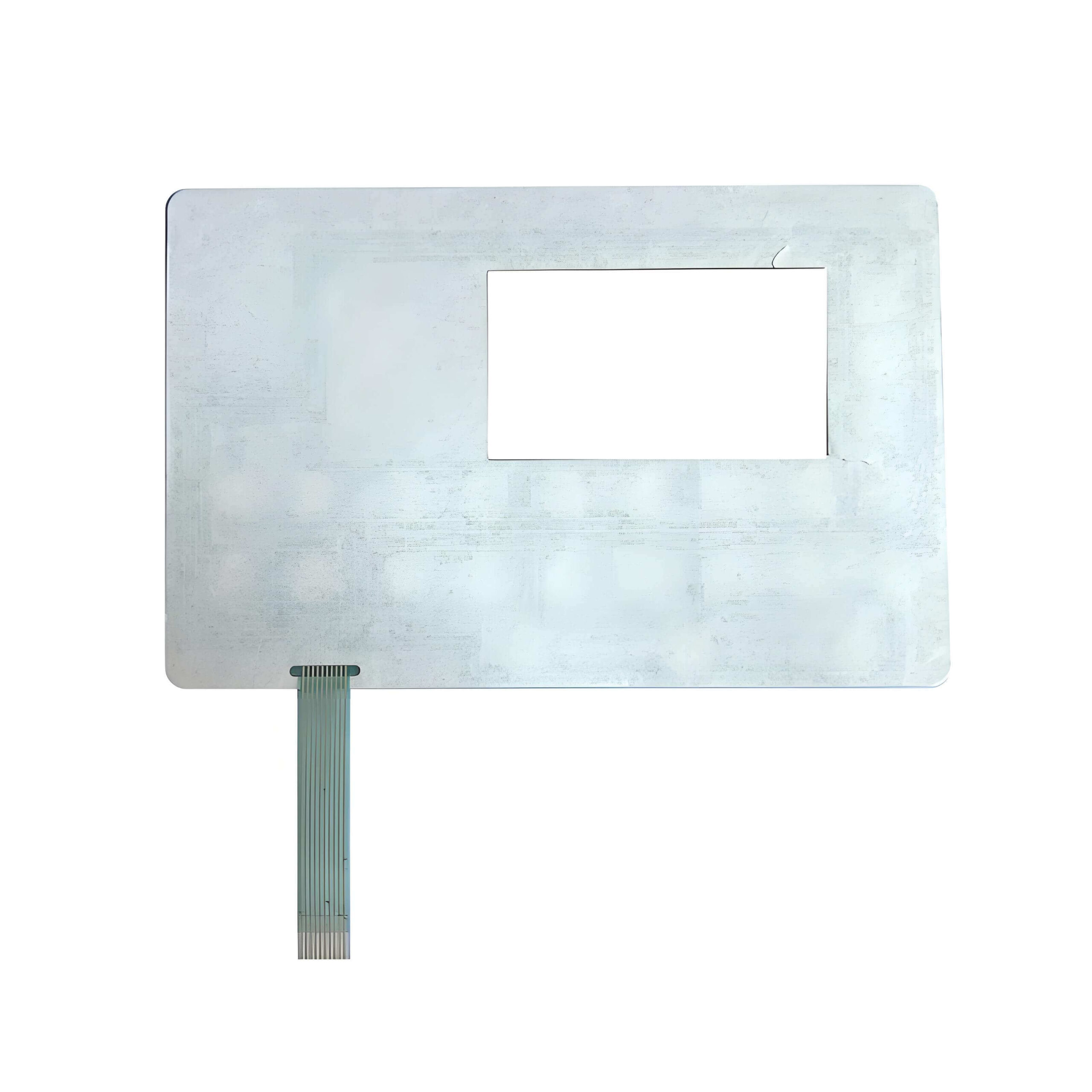

    (3) Rear adhesive:3M 467

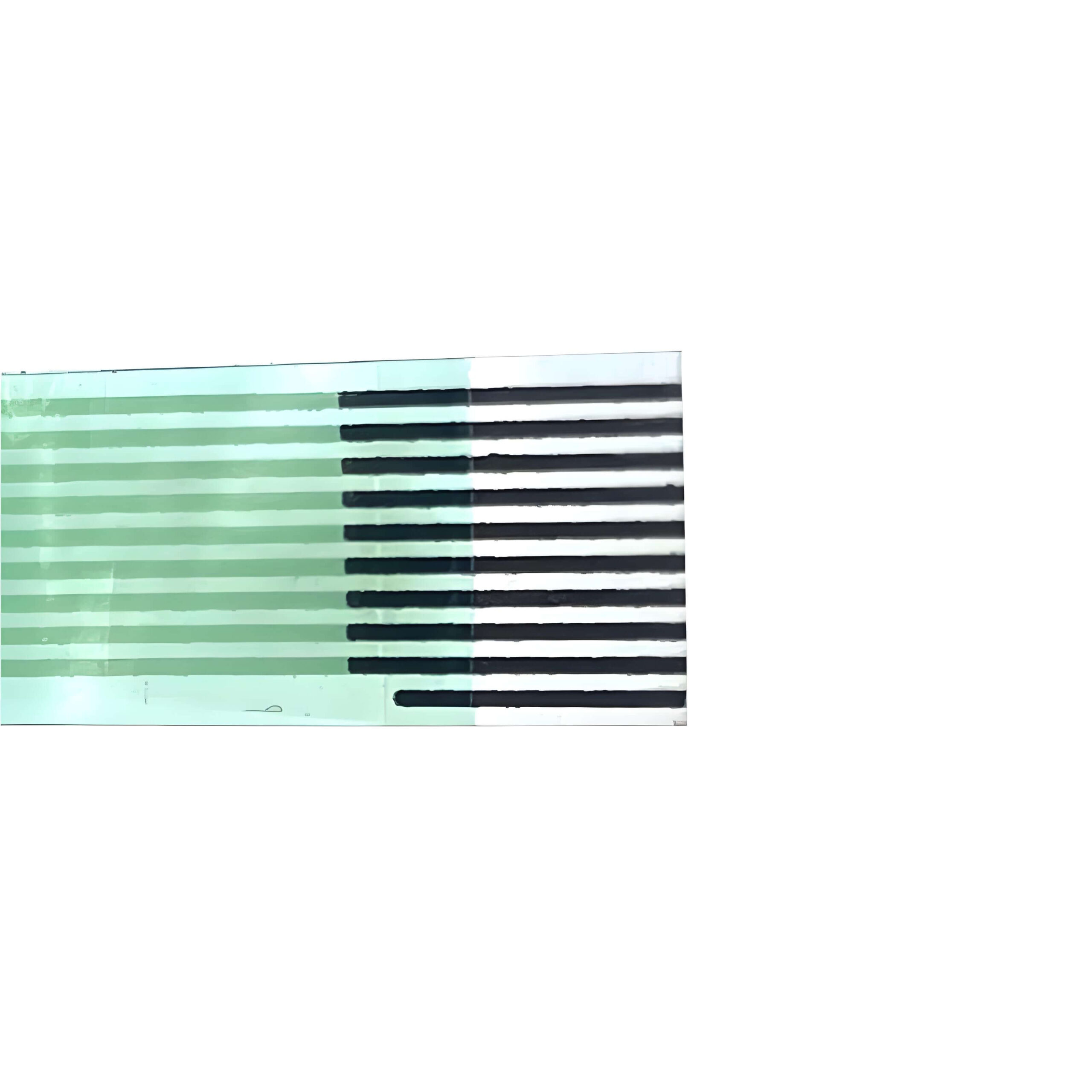

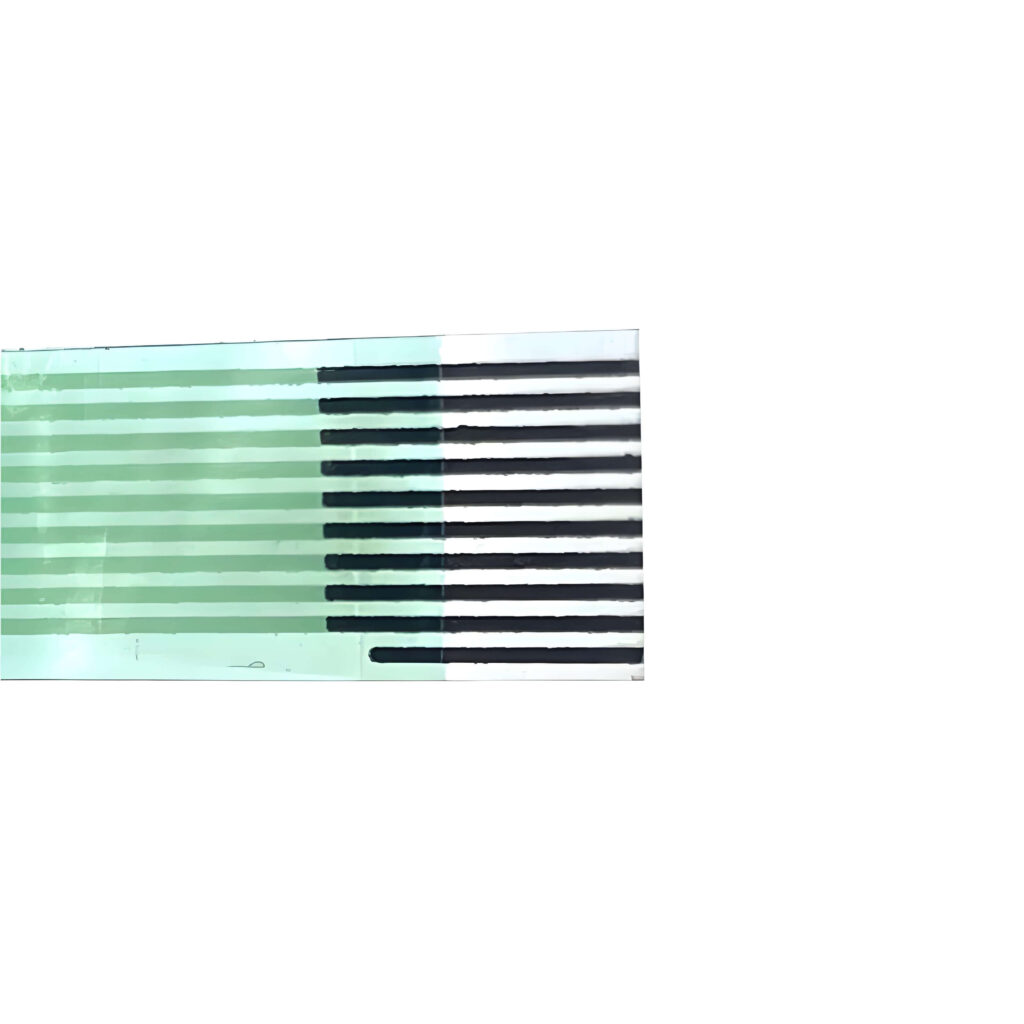

  • Connector: FPC, pitch 1.0mm, 0.3mm thickness
  • Working temperature: -20℃ ~ +60℃
  • Work life: more than 1 million times

Typical parameters

Item

Specification

Working Voltage

5V DC

Rated Current

25mA – 150mA

Operating Temperature

-20℃ ~ +70℃ For Metal Dome

-20℃ ~ +40℃ For Poly Dome

Operating Humidity

100% RH For Waterproof Design

<80% RH For Non-Waterproof Design

Sealing Property

IP68 For Waterproof Design

IP65 For Non-Waterproof Design

Storage Temperature

0 – 40℃

Storage Humidity

<80% RH

Button Trigger Force

150 – 400gf

Button Embossing Height

0.3 – 0.5mm

Working Life

0.8 – 1.5 million

Tail Folding

R > 1mm, 180-degree bend
