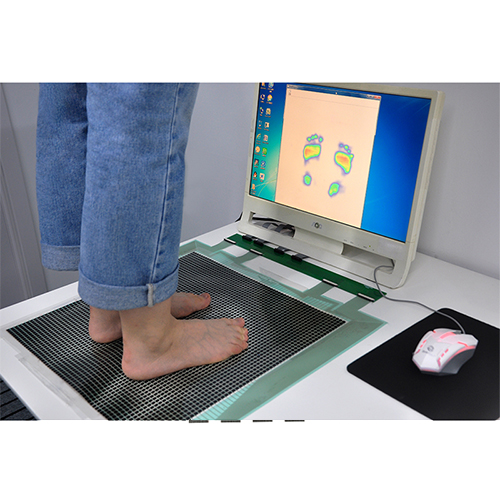

Pressure distribution sensor

  • Model: Matrix FSR 60*60
  • Dimension: 525mm*473.28 mm
  • Sensing Size: 418.5mm*418.5 mm
  • Force measuring range(optional): 500g-150Kg
  • Substrate Material: PET
  • Thickness: ≤0.3mm
  • Force repeatable (single part): <±5%, 80% Max force applied
  • Off resistance: >1MQ
  • Response time: <1 ms
  • Working temperature：-20℃~60℃
  • Connector: FPC,Pitch 1.00mm
Download Datasheet »

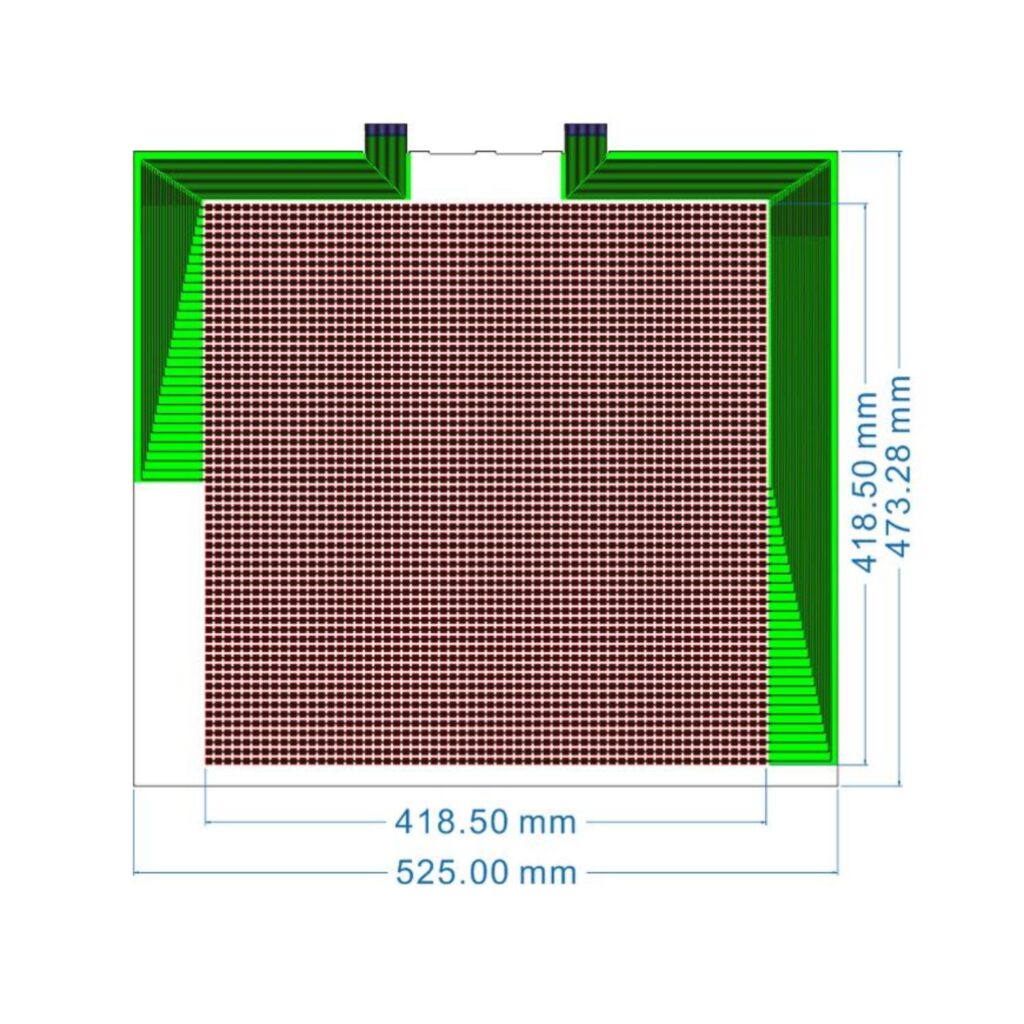

Dimension infomation

QQ截图202101262146341
微信图片 20260114150209 24 173

Typical parameters

Item

Specification

Working Voltage:

3-5V DC

Rated Current:

10mA~100mA

Operating Temperature:

-20℃ ~ +60℃

Storage Temperature:

0 – 35℃

Storage Humidity

<70% RH

Working Life:

>2 million times
