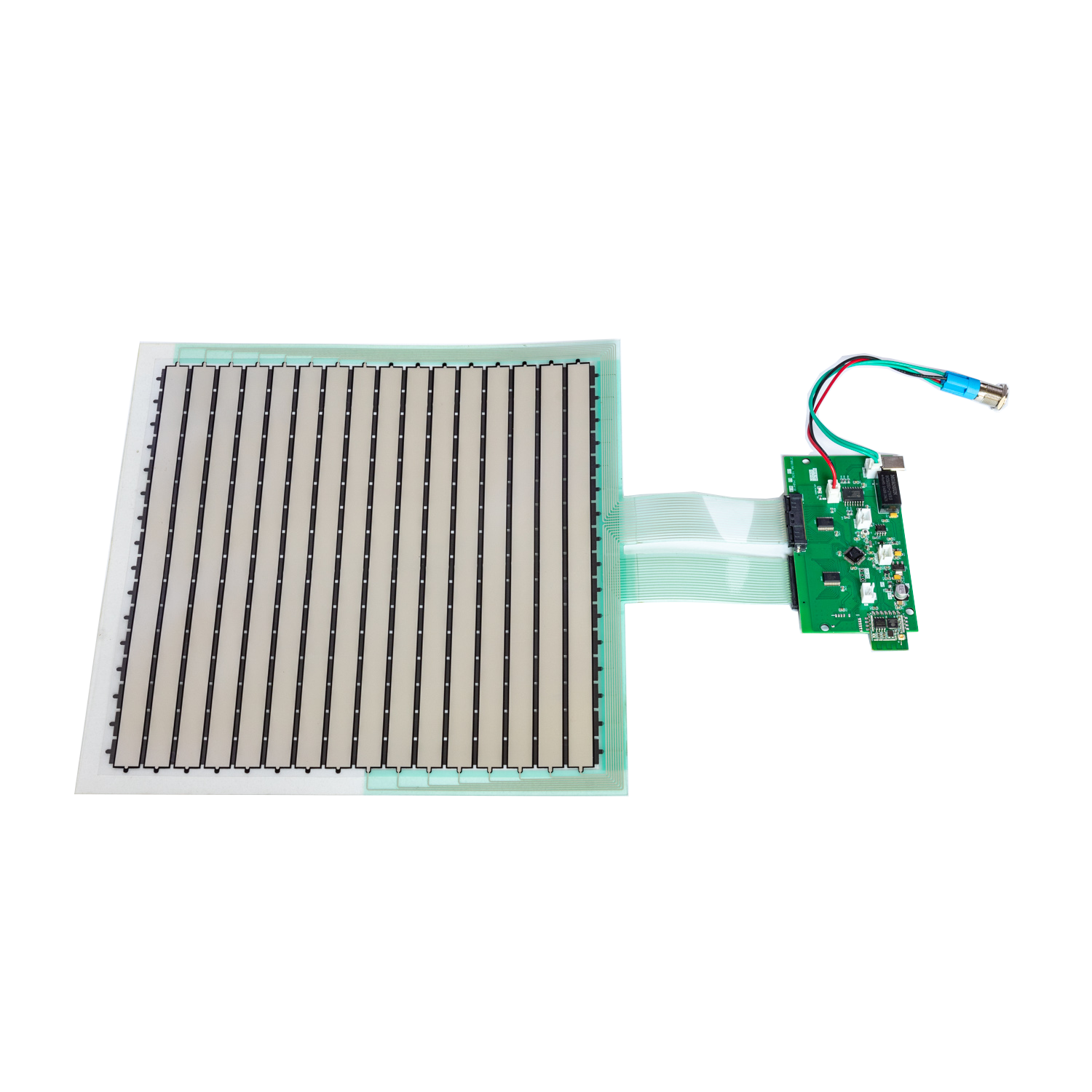

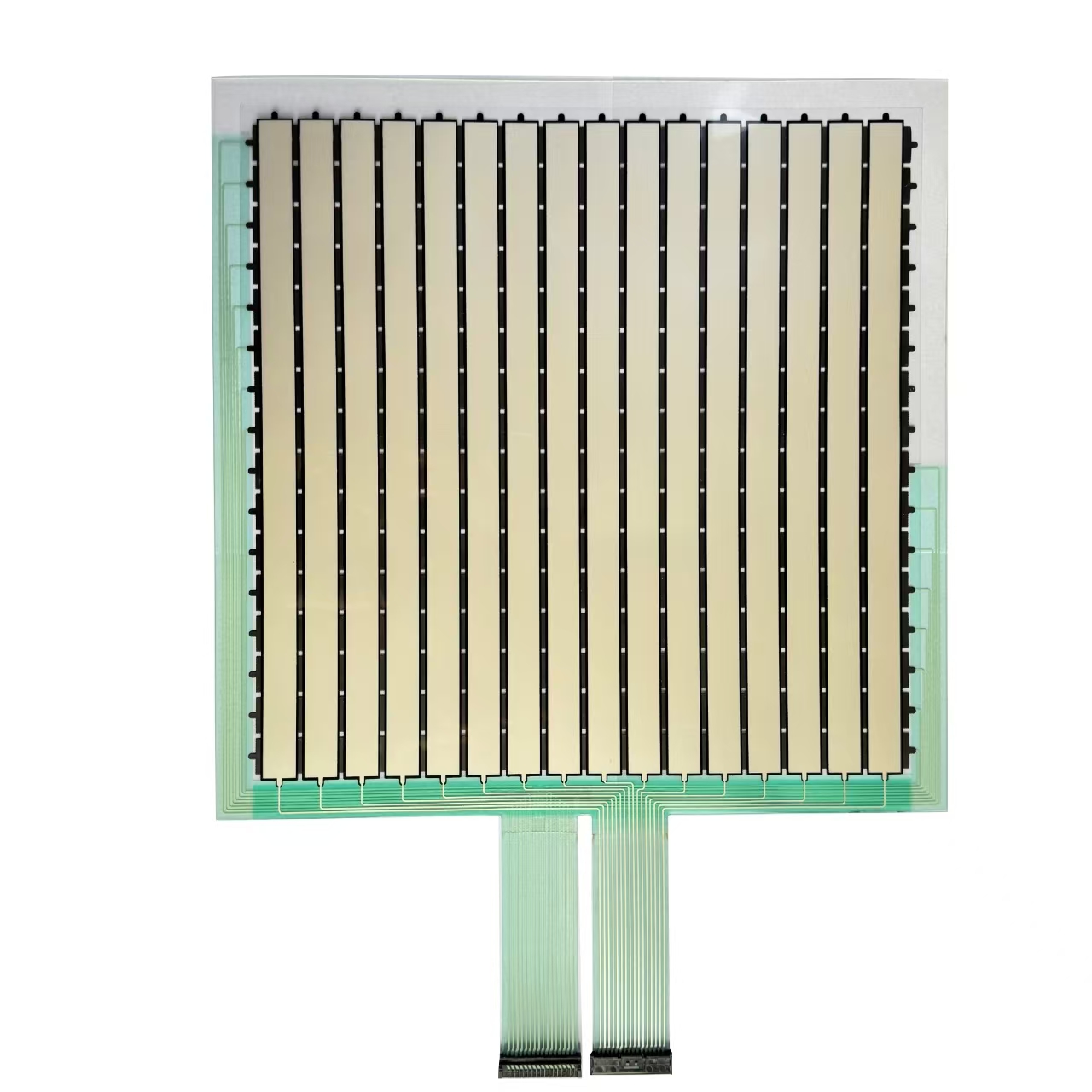

Pressure distribution sensor

  • Model: Matrix FSR 16*16
  • Dimension: 228*228mm
  • Sensing Size: 528cm²
  • Force measuring range(optional): 500g-50Kg
  • Substrate Material: PET
  • Thickness: ≤0.3mm
  • Force repeatable (single part): <±5%, 80% Max force applied
  • Off resistance: >1MΩ
  • Response time: <1 ms
  • Working temperature：-30℃~60℃
  • Connector: FPC,Pitch 1.00mm
Download Datasheet »

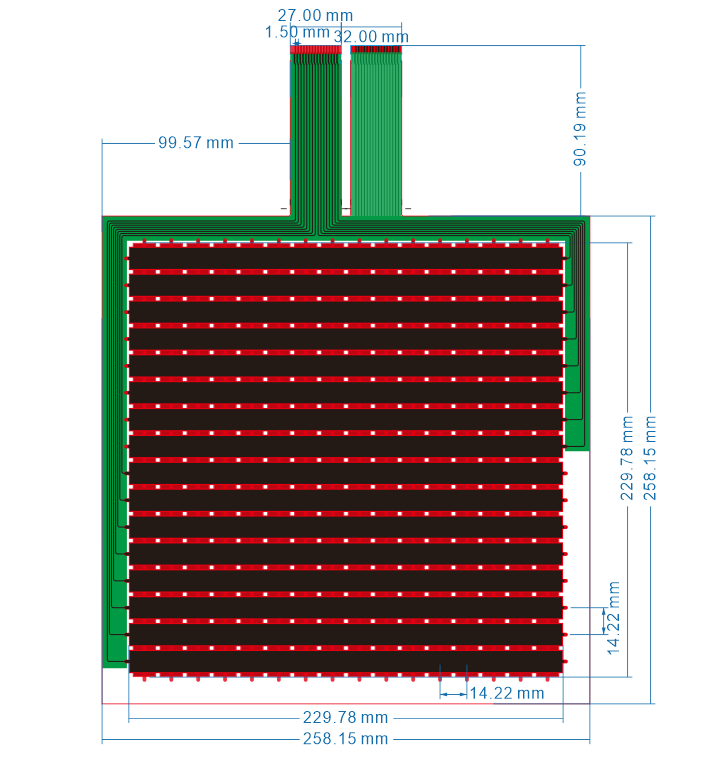

Dimension infomation

微信图片 20260121161147 43 173
ff9d5dfefb0383f5739bb5ee8e735ee01 1

Typical parameters

Item

Specification

Working Voltage:

3-5V DC

Rated Current:

10mA~100mA

Operating Temperature:

-20℃ ~ +60℃

Storage Temperature:

0 – 35℃

Storage Humidity

<70% RH

Working Life:

>2 million times
