Product / FSR / Standard FSR / FA201 FSR

Single sencel force sensing resistor

  • Model: FSR FA201
  • Dimension:185.23mm*14mm
  • Sensing Size: Φ9.53mm
  • Force measuring range(optional): 50g-2Kg/100g-10Kg
  • Substrate Material: PET
  • Thickness: ≤0.3mm
  • Force repeatable (single part): <±5%, 80% Max force applied
  • Off resistance: >1MQ
  • Response time: <1 ms
  • Working temperature：-20℃~60℃
  • Connector: Male/Female/Bare,Pitch 2.54mm
Download Datasheet »

Dimension infomation

c68028388dd02431106c1826ec2b1b2c

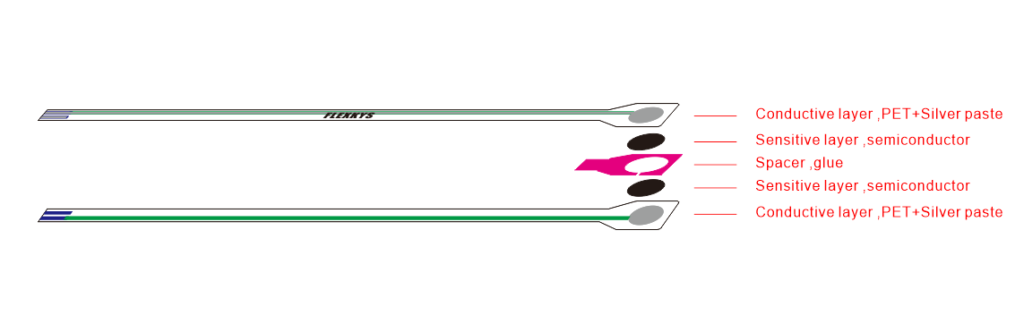

5a23d5370182ef09d0ad0a68e174d5d9

Typical parameters

Item

Specification

Working Voltage:

3-5V DC

Rated Current:

10mA~100mA

Operating Temperature:

-20℃ ~ +60℃

Storage Temperature:

0 – 35℃

Storage Humidity

<70% RH

Working Life:

>2 million times
