Product / FSR / Standard FSR / FA408 FSR

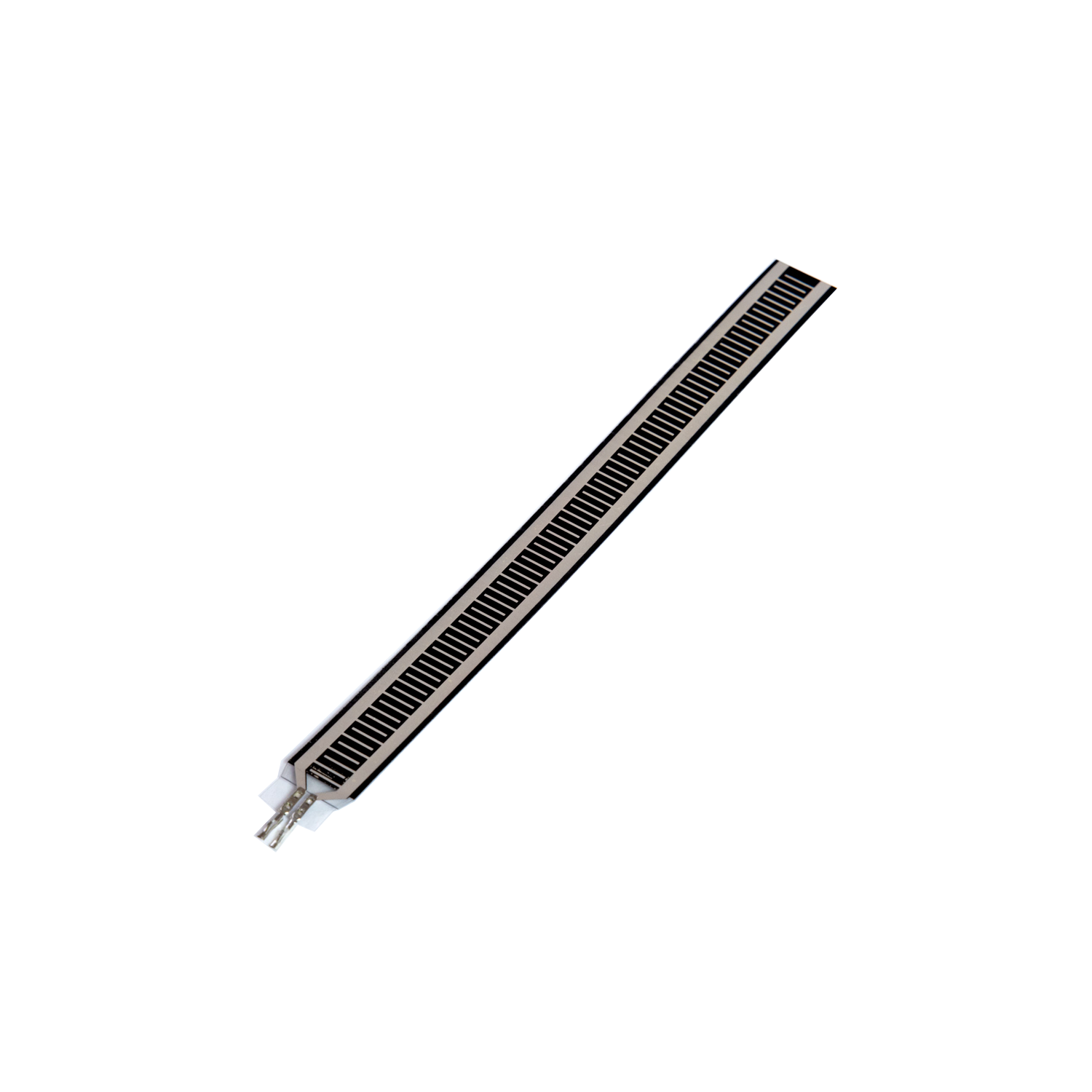

Single sencel force sensing resistor

  • Model: FSR FA408
  • Dimension: 170mm*15mm
  • Sensing Size: 158.26mm*10mm
  • Force measuring range(optional): 100g-10Kg/200g-30Kg
  • Substrate Material: PET
  • Thickness: ≤0.3mm
  • Force repeatable (single part): <±5%, 80% Max force applied
  • Off resistance: >2MQ
  • Response time: <1 ms
  • Working temperature：-20℃~60℃
  • Connector: Male/Female/Bare,Pitch 2.54mm
Download Datasheet »

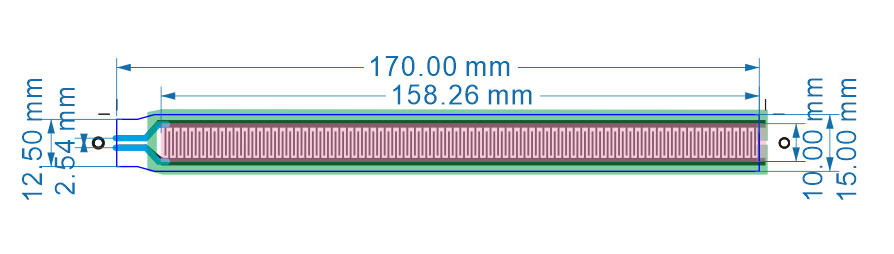

Dimension infomation

600969cfefe807129749cd730049d650

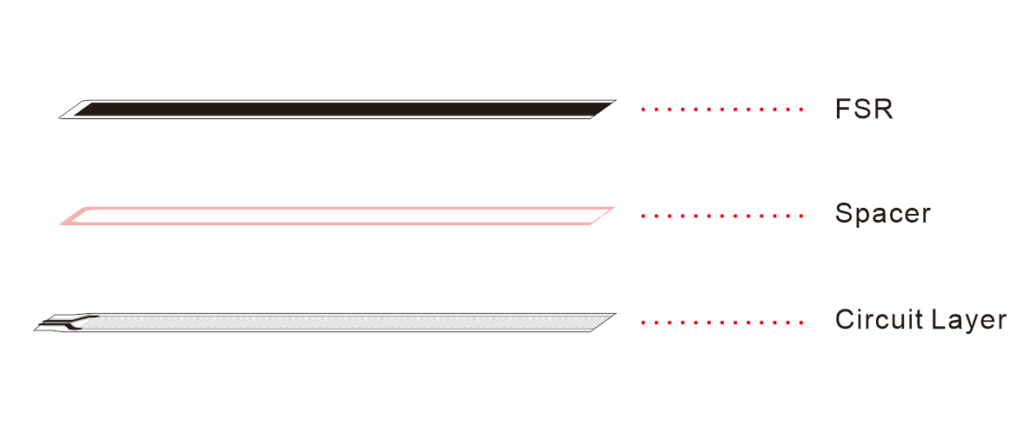

1d3292e250ce991c3256f6d2873107b8

Typical parameters

Item

Specification

Working Voltage:

3-5V DC

Rated Current:

10mA~100mA

Operating Temperature:

-20℃ ~ +60℃

Storage Temperature:

0 – 35℃

Storage Humidity

<70% RH

Working Life:

>1 million times
