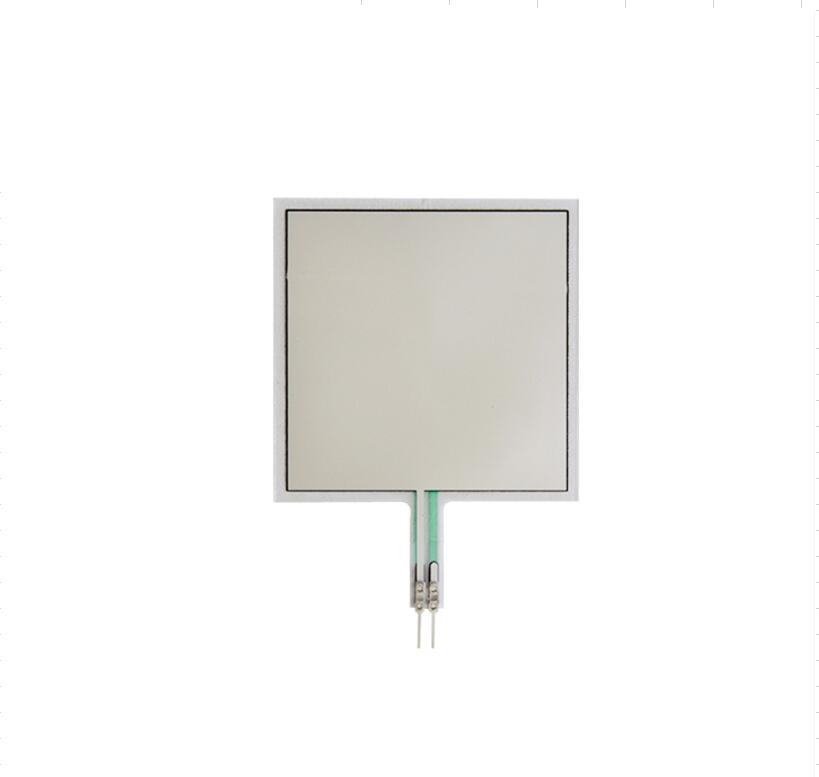

Single sencel force sensing resistor

  • Model: FSR FA502-A
  • Dimension: 55.90mm*75.3mm
  • Sensing Size: 51.40*50.80mm
  • Force measuring range(optional): 50g-10Kg/100g-10Kg/200g-30Kg
  • Substrate Material: PET
  • Thickness: ≤0.3mm
  • Force repeatable (single part): <±5%, 80% Max force applied
  • Off resistance: >1MQ
  • Response time: <1 ms
  • Working temperature：-30℃~60℃
  • Connector: Male/Female/Bare,Pitch 2.54mm
Download Datasheet »

Dimension infomation

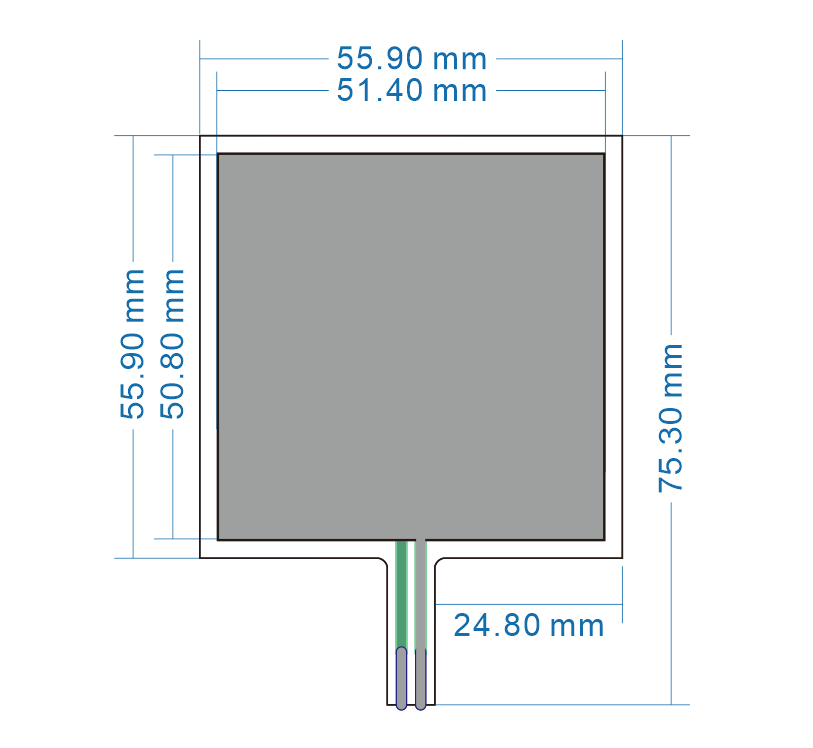

502 B尺寸图

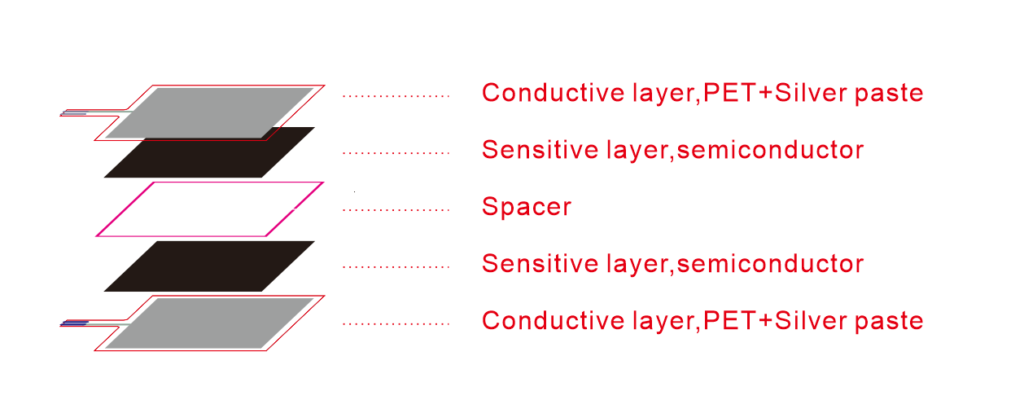

502 B结构图

Typical parameters

Item

Specification

Working Voltage:

3-5V DC

Rated Current:

10mA~100mA

Operating Temperature:

-20℃ ~ +60℃

Storage Temperature:

0 – 35℃

Storage Humidity

<70% RH

Working Life:

>1 million times
