Product name

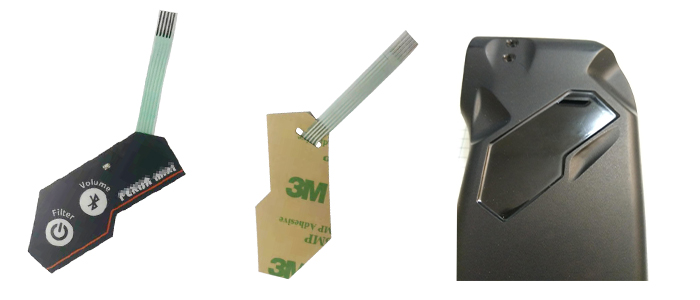

Two keys UV and water proof outdoor LED Membrane Switch keypad
Keyword
UV proof Membrane Switch,water proof Membrane Switch Keypad,Two keys Membrane Switch,LED membrane switch,Outdoor Membrane Switch,UV proof Membrane keypad,water proof Membrane Keypad,Two keys Membrane keypad,LED membrane keypad,Outdoor membrane keypad.
Specification

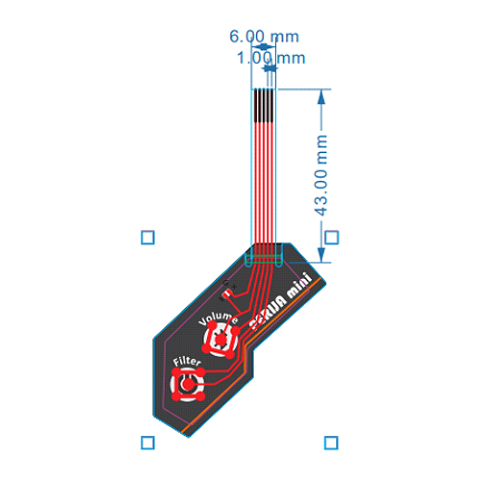

①Graphic overlay： Autotex XE F200 （UV proof）

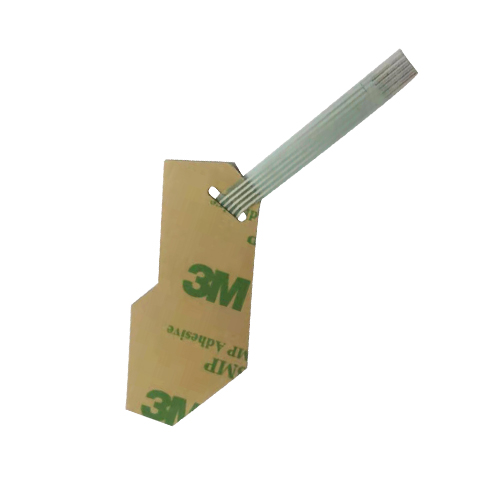

②Back adhesive: 3M 468
③Key type: embossed ,metal dome,4 anglesφ8mm,240g
④Key NO.:2 keys

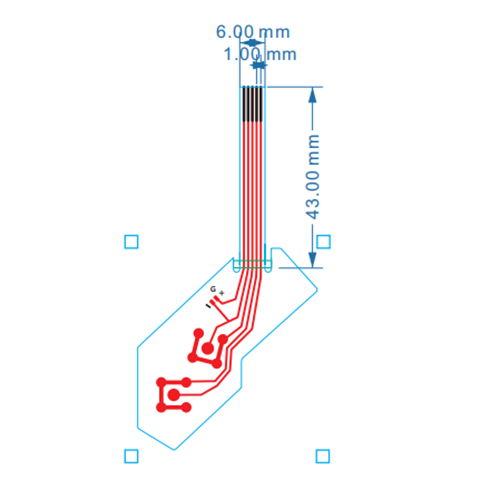

⑤Connector: ZIF 1.0mm pitch

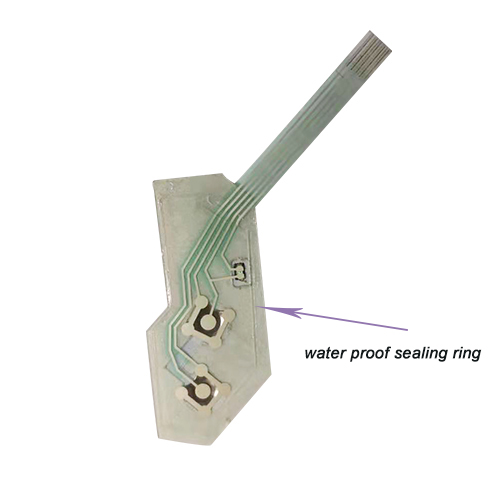

⑥Water proof: water proof sealing ring
⑦LED:1pcs
Application
Used for a plastic parts which need work in outdoor environment
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-70℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
