Product name

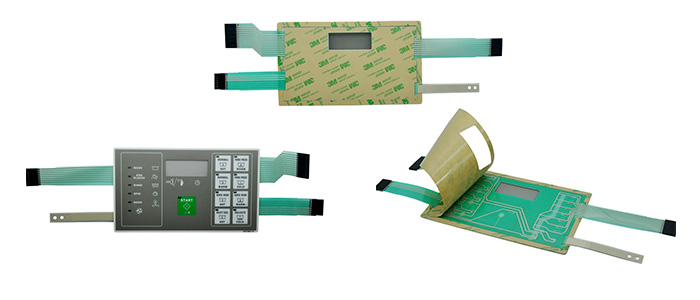

Washing Machine Waterproof Membrane Switch Keypad
Keyword
membrane switch keypad,waterproof membrane keypad,waterproof membrane switch,repair washing machine membrane switch
Specification
①Material:
a.Graphic overlay-Autotex F150

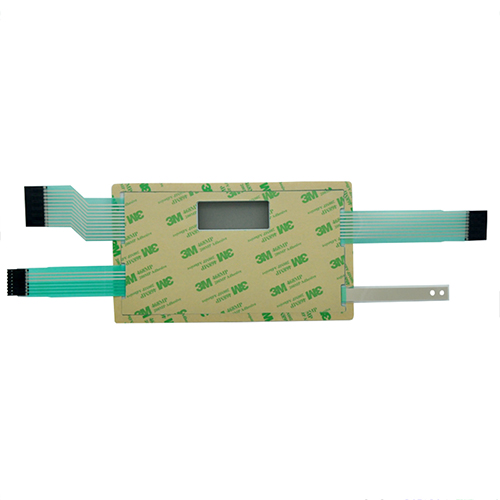

b.Rear adhesive-3M 468
②Size:59mm*119mm
③SMD: Led, resistor

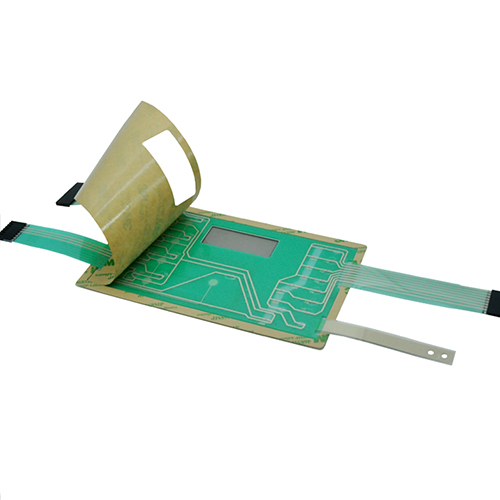

④Circuit layers: one layer for all keys and one layer for all leds & resistors
⑤Connector:Female 2.54mm connector

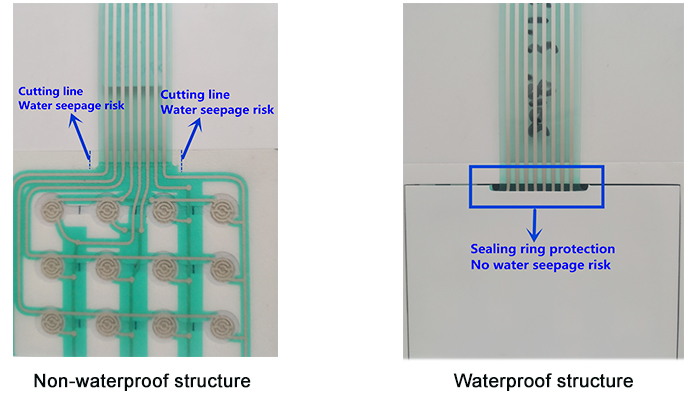

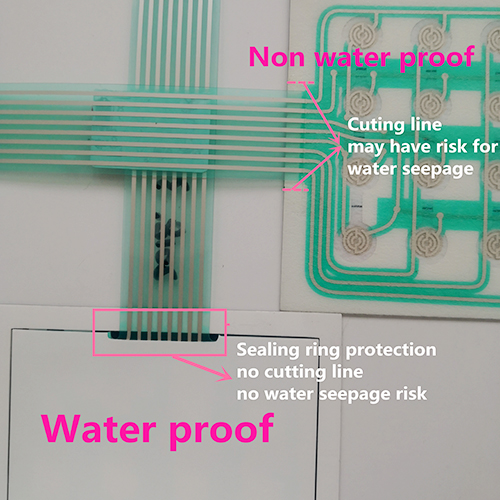

⑥Waterproof seal ring design: grade IP65
⑦Total thickness: 2.3mm
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-70℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
