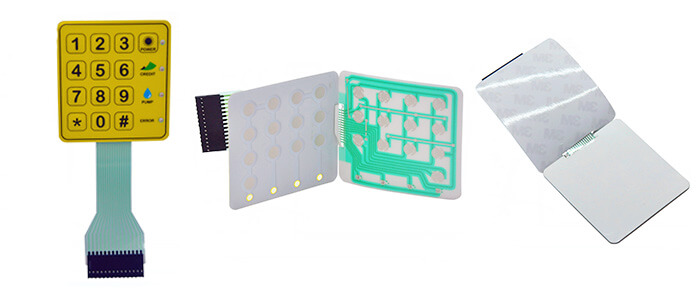

Product name
Anti-UV and waterproof outdoor use membrane switch
Keyword
Anti-UV membrane switch,outdoor use membrane switch,waterproof membrane switch
Specification
①Dimension: 106.00*48.00mm

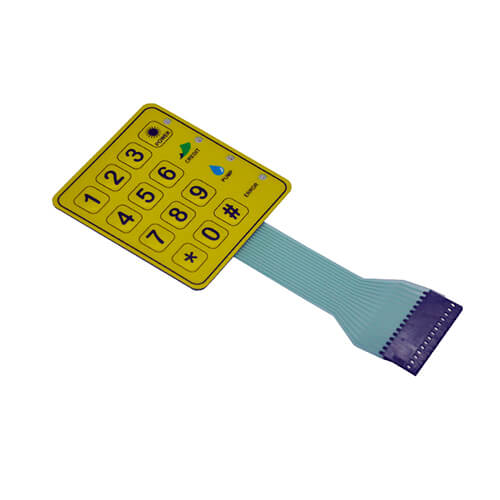

②Material for graphic overlay: Autotex XEV200 UV resistant

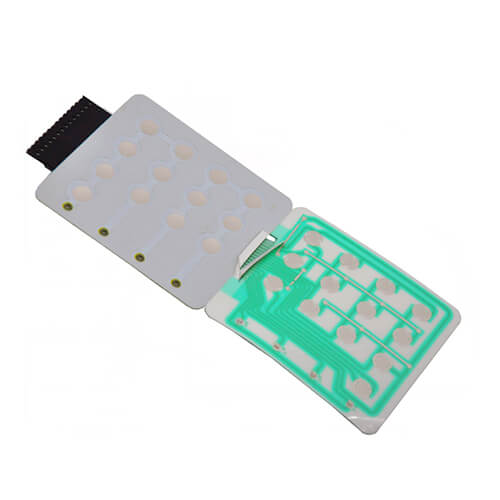

③Button type: 13 push buttons, poly dome,with embossed
④Led: 4 pcs
⑤Tail length: 114 mm
⑥Connector:2.54mm female connector

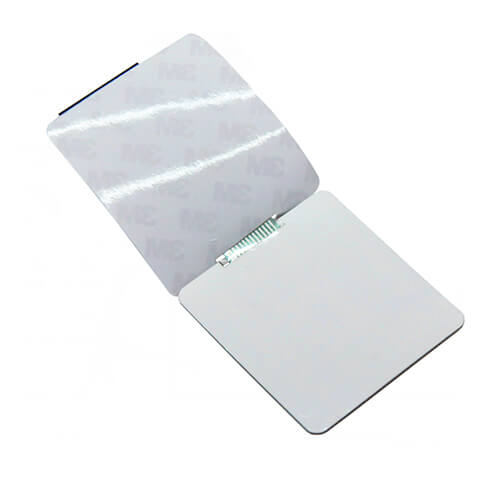

⑦Back adhesive: 3M 55280 waterproof glue
⑧Thickness of membrane switch: 1.3mm
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-80℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
