Product name

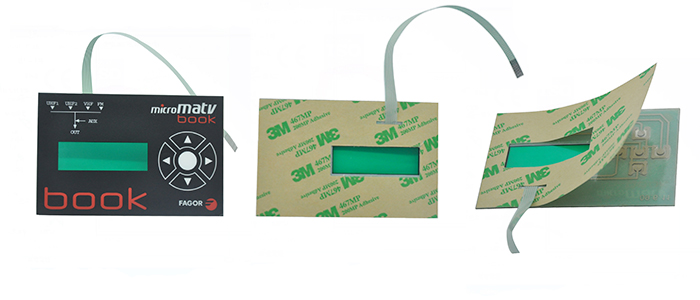

Custom metal dome membrane keyboard
Keyword
membrane keyboard,metal dome membrane keyboard,Custom membrane keyboard.
Specification
（1）Size：100*65mm

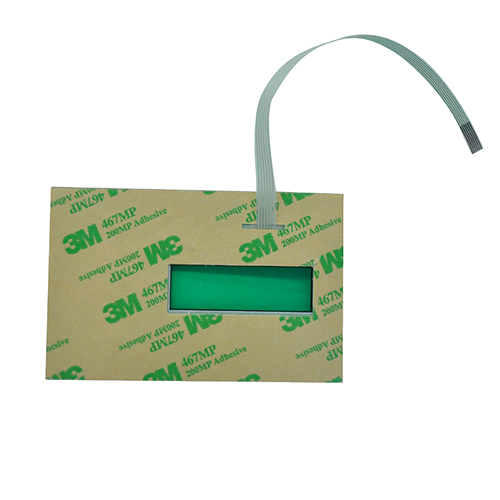

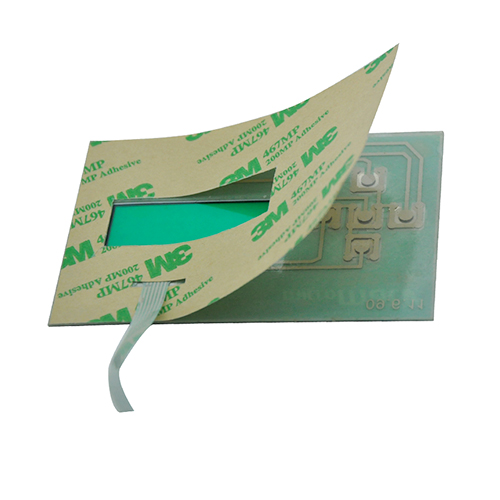

（2）Material：a.autotex F150；b.rear adhesive-3M 467
（3）Button：Pillow emboss,mtal dome,4 legs, φ10mm,280g
（4）Window: Green translucent
（5）Connector：ZIF 1.0mm pitch
（6）Total thickness：0.84mm
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-80℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
