Product name

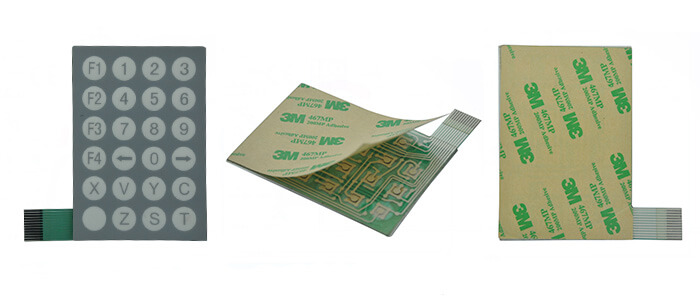

Embossed key metal dome tactile 4x6 membrane switch keypad
Keyword
membrane switch,metal dome membrane switch,embossed key membrane switch,tactile membrane switch,4x6 membrane switch,4x6 membrane keypad.
Specification
①Material:
a.Graphic overlay-Matt PET,Autotex F200

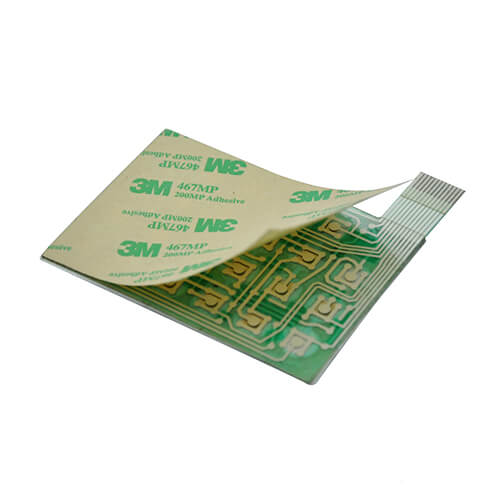

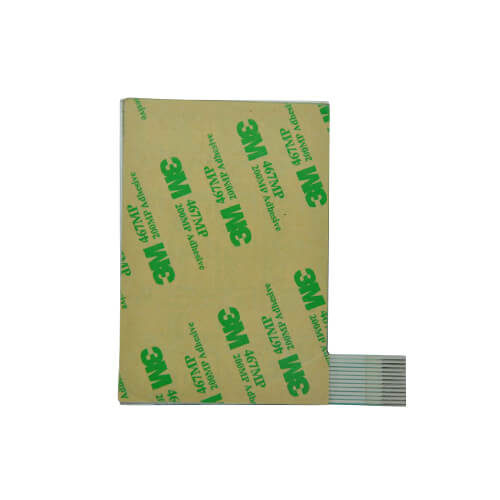

b.Rear adhesive-3M 467
②Size:H120*W180mm
③Button:Pillow emboss,Metal dome,4 legs, diameter 10mm,280g
④Connector:ZIF 1.0mm pitch
⑤Total thickness:0.85mm
⑥Cable length:35mm
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-80℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
