Product name

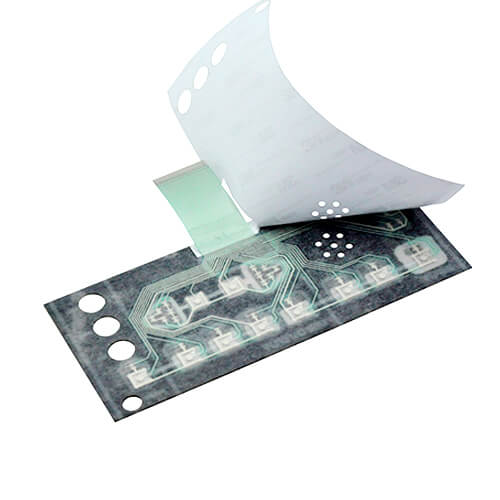

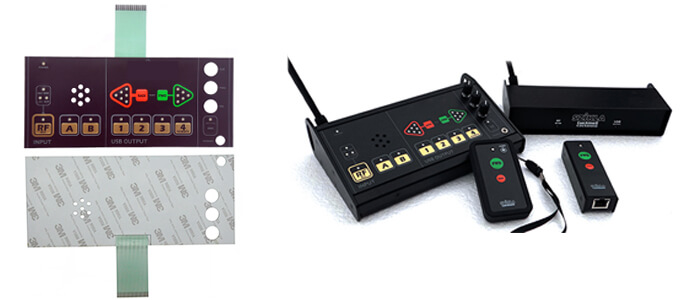

Metal dome remote presentation system control membrane keypad panel
Keyword
membrane keypad,membrane keypad panel,remote presentation system keypad,Metal dome membrane keypad.
Specification

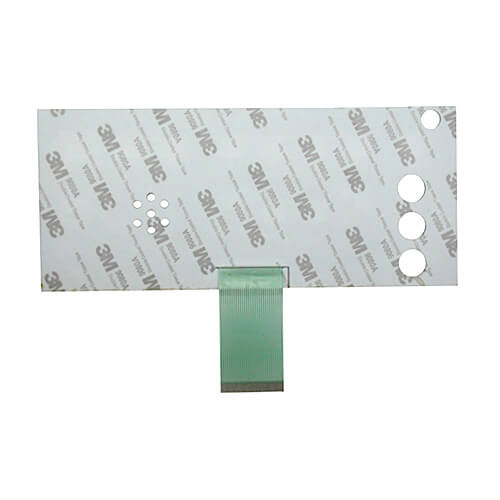

①Graphic overlay: F150, Back adhesive: 3M9080A
②Punching holes: 3.5mm*7, 9mm*1, 13mm*3
③Size: 200 x 87mm
④Connector: 1.0mm ZIF connector, 30pins
⑤Cable length: 60mm
⑥Pillow embossing: metal dome, 10 pieces
⑦3mm LEDS：24 leds
⑧Color:
1- WHITE
2- PMS COOL GREY 8C
3 - BLACK
4 - GOLD METALLIC - PMS873C
5 - GREEN - PMS347C
6 - RED - PMS185C
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-80℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
