Product name

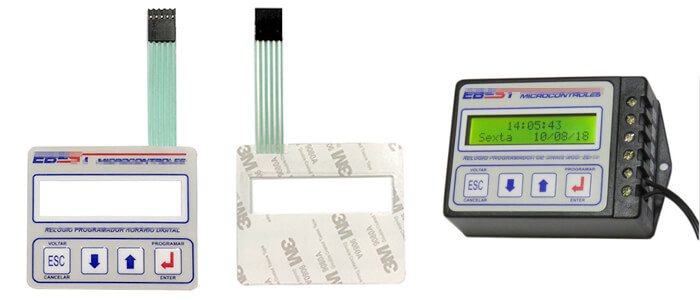

Signal encoder clock membrane keypad panel
Keyword
membrane keypad,membrane keypad panel,Signal encoder clock keypad,keypad panel,membrane panel,clock membrane keypad.
Specification
①Dimension: 104.90*105.10mm
②Material: PC Gloss 0.175mm
③Button type: metal dome
④Tail length: 70.00mm

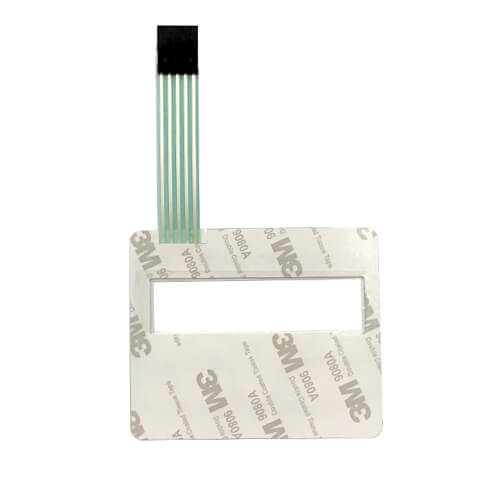

⑤Back adhesive: 3M 9080A
⑥Connector: 2.54mm female connector
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-70℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
