Product name

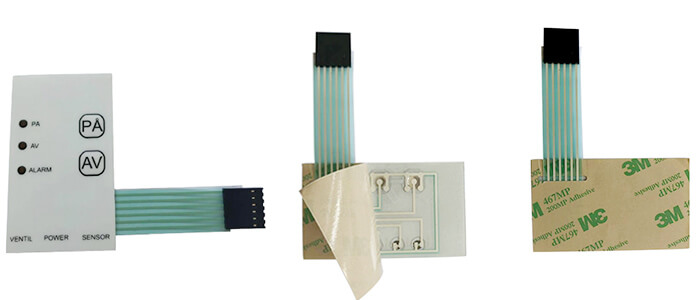

Mini Electronic control panel membrane switch keypad
Keyword
membrane switch,membrane switch keypad,membrane keypad,Electric membrane keypad,Electronic control panel,plastic tactile membrane keypad.
Specification
①Graphic overlay: Autotex F150

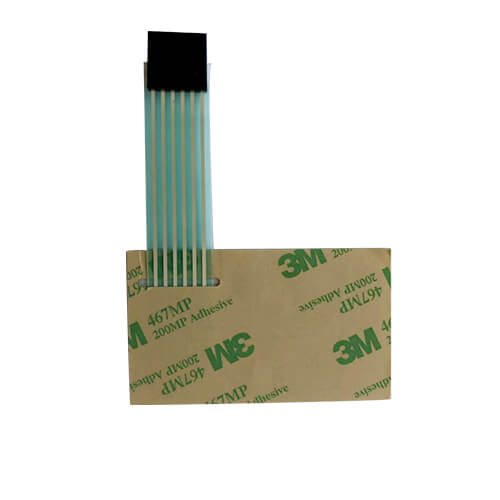

②Back adhesive: 3M 467
③LED: Green 0805 *3

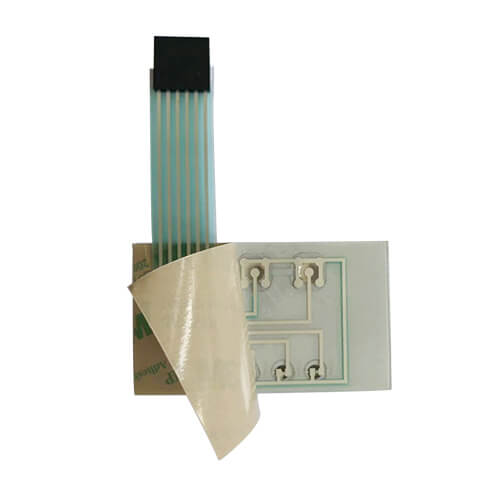

④Button type: metal dome
⑤Connector: Female connector 2.54mm
⑥Background color: RAL9003 milk white
⑦Buttons and led windows: embossed
⑧Led display window: half black transparent
Application
Electronic speed controllers
Electronic controller electric heating
Control system
Electric circular duct heaters/preheaters for ventilation systems
Speed controller
Transformer speed controllers
External temperature setpoint
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-70℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
