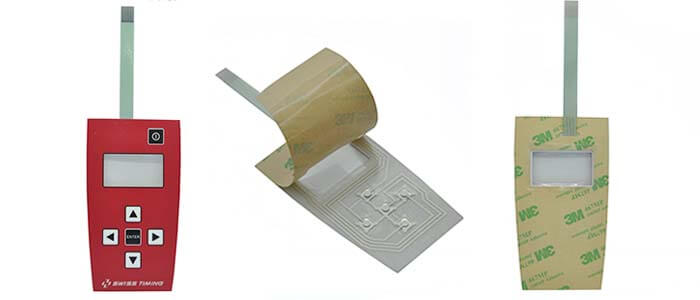

Product introduction
Keyword
membrane switch keypad,metal dome membrane switch, front control panel
Specification
①Material:
a.Graphic overlay-Matt PET,Autotex F200

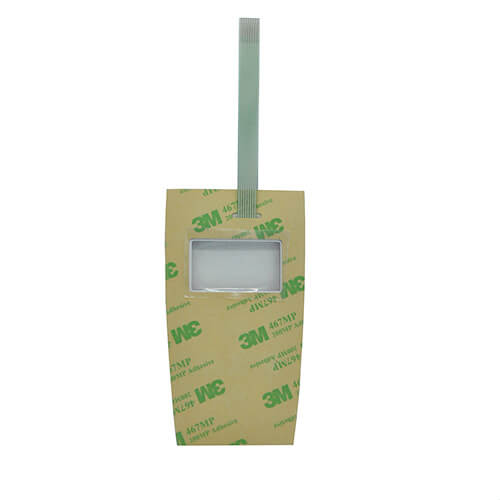

b.Rear adhesive-3M 467
②Size:H90*W50mm
③Button:Pillow emboss,Metal dome,4 legs Diameter :10mm,280g
④Connector:ZIF 1.0mm pitch
⑤Total thickness:0.85mm
⑥Cable length:70mm
Electrical performance
Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-150mA,0-30V DC |
Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
Non-tactile Switch Stroke | 0.1-0.4mm | Tactile Switch Stroke | 0.4-1.0mm |
Working Life | >0.5-1.2 million times | Working Temperature | -20℃-80℃ |
Working Humidity | 40℃,90%RH No Influence | Substrate Voltage | 1500V DC |
Feed BackTime | 10ms | Tail Folding | R>1,180 angel |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers.
