Product name
Capacitive Touch Membrane Switch
Keyword
membrane switch,capacitive membrane switch,touch membrane switch,capacitive Touch switch.
Specification

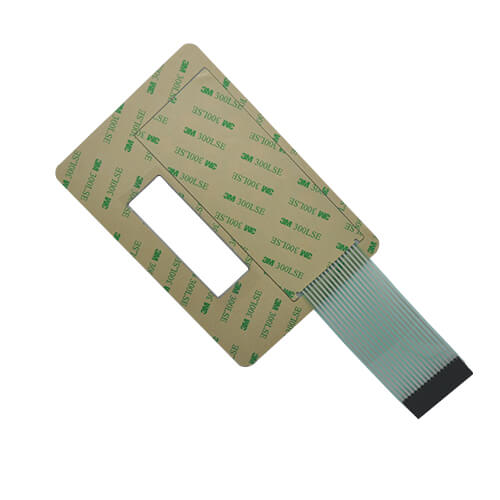

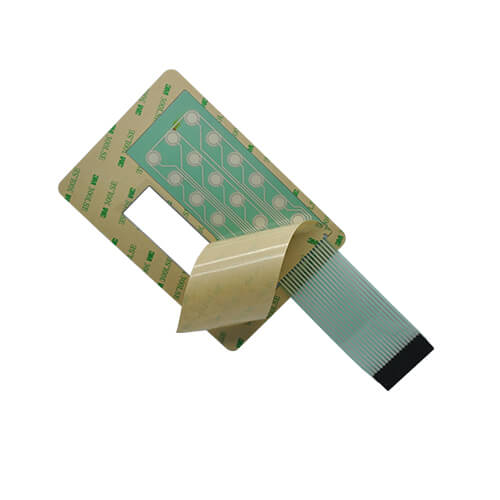

①Main Material: a.Graphic overlay-Matt PET 0.20mm; b.Circuit layer:PET 0.125mm; c.Rear adhesive-3M 300LSE
②Size: 164*113 mm
③Button:Capacitive touch button
④Cable length:50mm
⑤Connector: 2.54mm female connector
⑥Total thickness:0.78mm
Electrical performance
Wire Resistance | <1Ω/cm | Working current | ≤1mA |
Working Voltage | ≤6.5V | Touch resistance | ≤100mΩ |
Insulation Resistance | ≥100MΩ | voltage resistance | 250VAC，1min |
Working temperature | -20~80℃,RH95% |
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers. Please contact us by the form below,or send us Email: info@flexkys.com
Optional material for graphic overlay : （1）PET （2）PC （3）PVC, thickness from 0.13~2.0mm
