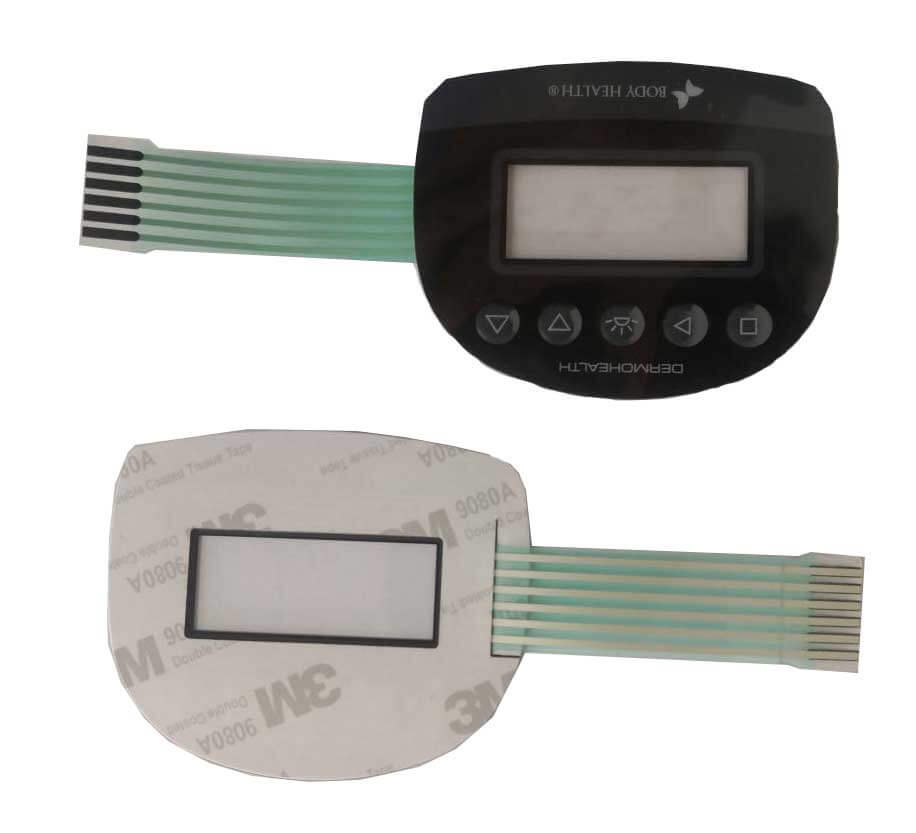

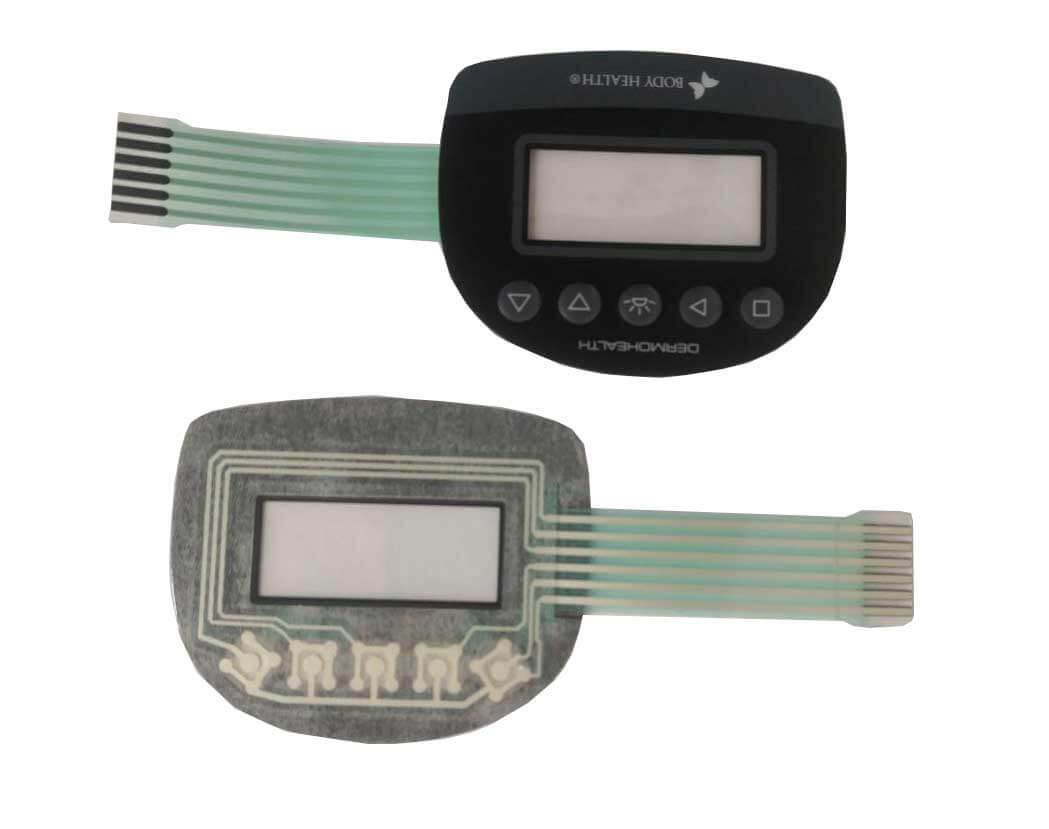

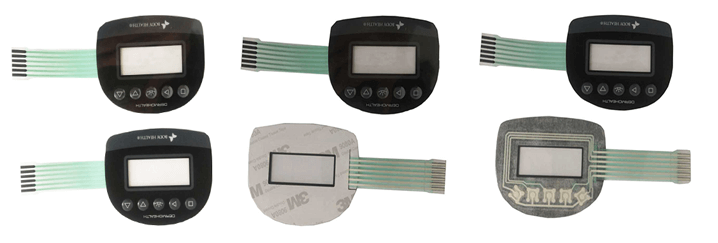

Mini key transparent window Membrane Switch keypad for medical and aesthetic equipment

　　Product name

　　Mini key transparent window Membrane Switch keypad for medical and aesthetic equipment

　　Product information

　　1.Graphic overlay： glossy  PC   0.175mm

　　2.Back adhesive: 3M 9080A

　　3.Key type:  embossed ,metal dome,4 angles,180g

　　4.Key NO.:5 keys

　　5.Connector: ZIF connector 2.54mm

　　6.Window:PLC

　　Application

　　Used for medical and aesthetic equipment.

　　Notice on mounting and operating

　　①The cable can be bent 180 degrees with a bending radius greater than 1mm.

　　②The optimum operating temperature is 0~30 degrees

　　③Once the product has been pasted, it cannot be torn off for use

　　④This product can be pasted on smooth ABS,PC and steel surface. The surface should be clean and dry before pasting

　　⑤Don’t bash the product

　　⑥Don’t bent the panel

　　⑦Don’t press the button with hard tool, such as Screw-driver
