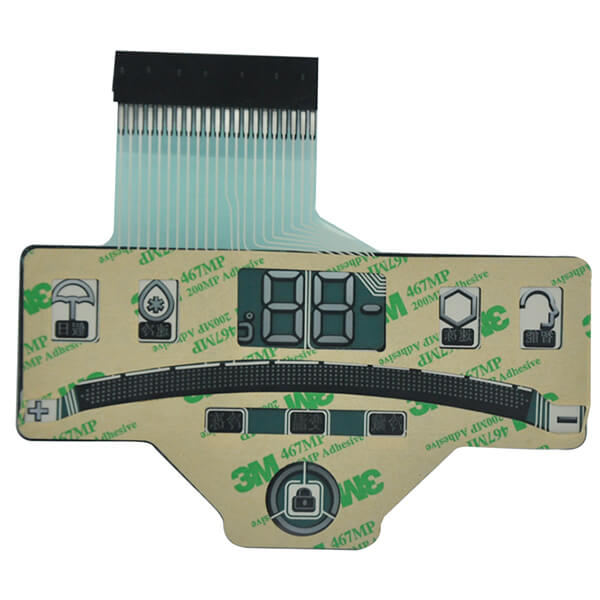

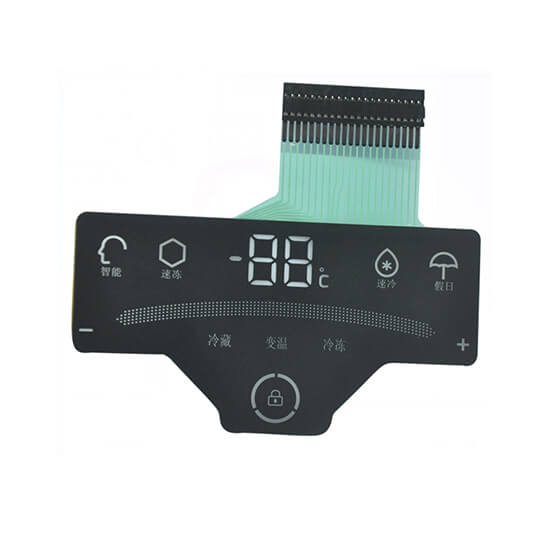

Product introduction
Keyword:
membrane switch,capacitive membrane switch,membrane switch for refrigerator, capacitive membrane switch.
Specification:

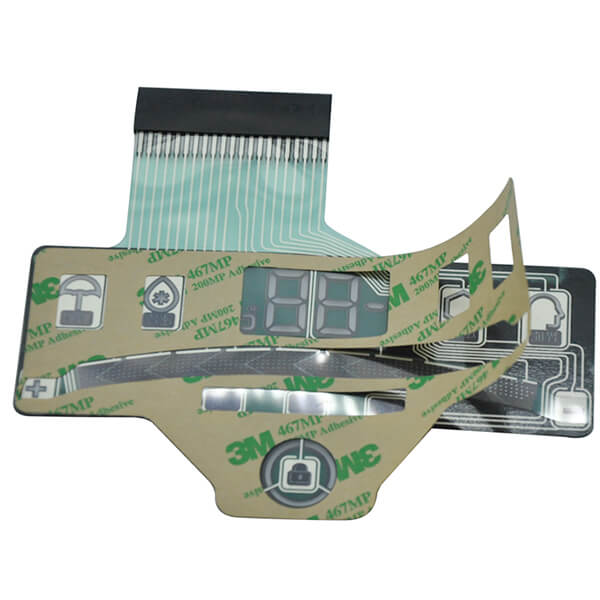

①Main Material: a.Graphic overlay-Matt PET 0.20mm; b.Circuit layer:PET 0.125mm; c.Rear adhesive-3M 467
②Size: 150*50 mm
③Button:Capacitive touch button
④Cable length:30mm
⑤Connector: 2.54mm female connector
⑥Total thickness:0.95mm
Electrical performance
Wire Resistance | <1Ω/cm | Working current | ≤1mA |
Working Voltage | ≤6.5V | Touch resistance | ≤100mΩ |
Insulation Resistance | ≥100MΩ | voltage resistance | 250VAC，1min |
Working temperature | -20~80℃,RH95% |
|
|
Comply with ROHS & REACH
The above product information is for reference only, we can provide customized production according to the design requirements of customers. Please contact us by the form below,or send us Email: info@flexkys.com
Optional material for graphic overlay :
（1）PET
（2）PC
（3）PVC, thickness from 0.13~2.0mm
► Optional material
Related technology
